Overview

The Execute Flow Node is a workflow orchestration component that allows users to call and execute other workflows from within a current workflow. This node enables modular workflow design and reusability of workflow components.


Node Type Information

TypeDescriptionStatus
Batch TriggerStarts the flow on a schedule or batch event. Ideal for periodic data processing.❌ False
Event TriggerStarts the flow based on external events (e.g., webhook, user interaction).❌ False
ActionExecutes a task or logic as part of the flow (e.g., API call, transformation).âś… True

This node is an **Action** node that executes other workflows from within the current workflow for modular workflow design.

Features

Key Functionalities
  1. Sub-flow Execution: Call and execute other flows
  2. Data Passing: Transfer current flow data as input 1. Modular Design: Create reusable workflow components
Benefits
  1. Modularity : Enables building complex flow in a modular fashion
  2. Reusability : Promotes code reuse and component sharing
  3. Simplification : Simplifies flow design and maintenance

Prerequisites

Before using the Execute Flow, ensure you have:

  • Active flows with compatible triggers (API Request, Chat, or Search)
  • Necessary permissions to execute target flows
  • Understanding of data flow and parameter passing

Configuration Reference

Execute Flow Parameters

ParameterDescriptionRequiredExample
Flow IDTarget flow selection from active flowsâś…4be6dea6-d13c-44d8-87cf-5ad46361c890
Request InputInput parameters for target flowâś…{ "prompt": "{{triggerNode_1.output}}"}

Usage Guidelines

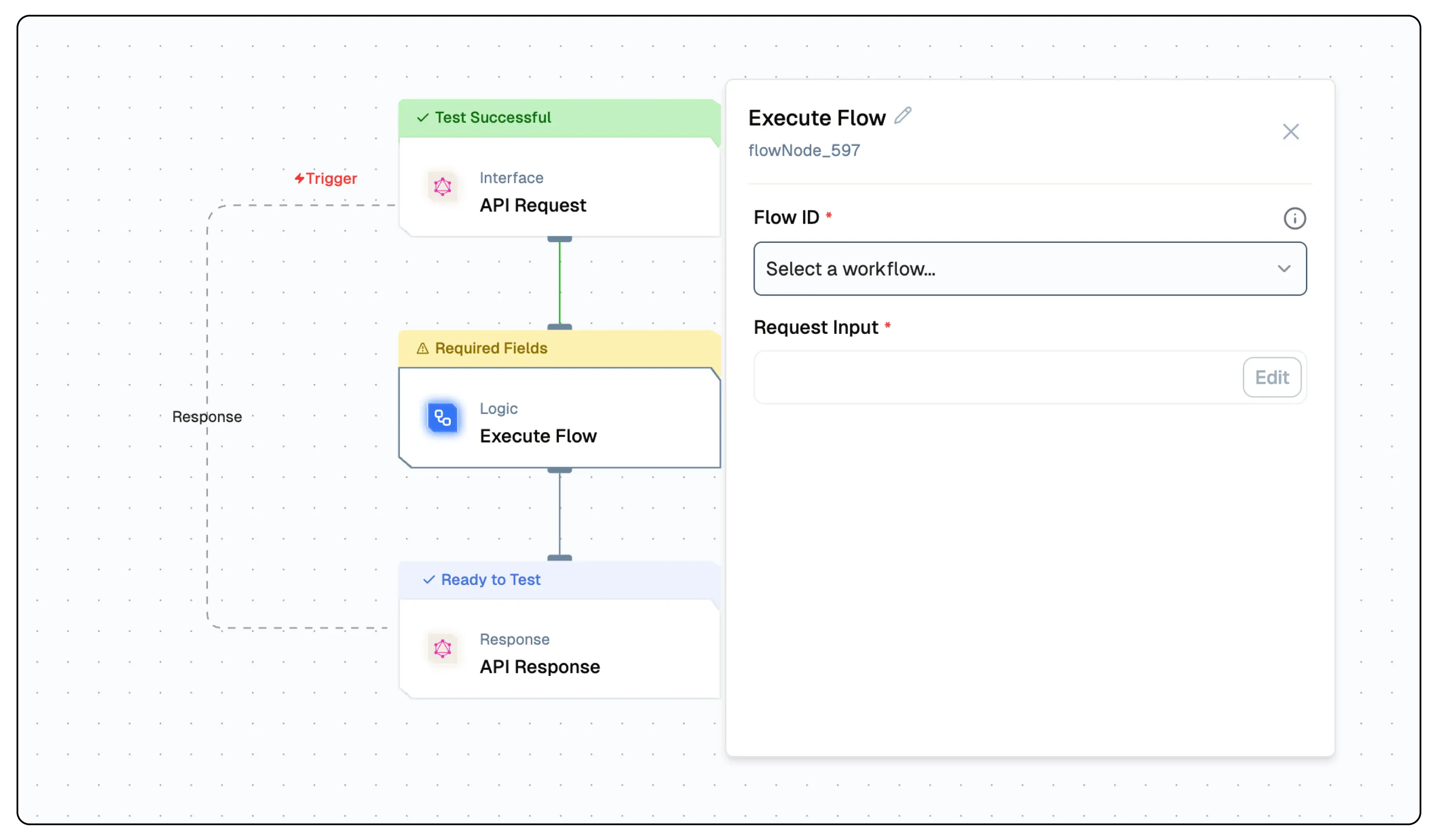

Setting Up Execute Node

  1. Add Execute Node:

    • Drag Flow Node to your workflow
    • Select target flow from dropdown
  2. Configure Parameters:

    • Set Flow ID for target flow
    • Configure input parameters
    • Map data from current flow
  3. Validate Configuration:

    • Ensure all required parameters are set
    • Verify data mapping is correct

Best Practices

  1. Modular Design

    • Break complex flow into smaller flows
    • Create reusable components
    • Maintain clear flow boundaries
  2. Data Management

    • Plan data flow between flow
    • Document parameter requirements
    • Handle data transformations appropriately
  3. Error Handling

    • Implement proper error checking
    • Provide fallback options
    • Monitor flow execution

Low-Code Example

- nodeId: flowNode_919
  nodeType: flowNode
  nodeName: Execute Flow
  values:
    flowId: flow_id
    requestInput: |-
      {
        "test": "{{triggerNode_1.output.user_name}}"
      }
  needs:
    - node_id

Output

  • flowOutput: An object containing the results or data generated by the executed flow.

Example Output

{
    "flowOutput": {}
}

Troubleshooting

Common Issues

ProblemSolution
Flow Not FoundVerify Flow ID and deployment status
Parameter MismatchCheck input parameter format and requirements
Permission DeniedConfirm execution permissions
Execution TimeoutReview flow complexity and timeout settings

Debugging Tips

  • Check Lamatic Flow logs for error details
  • Verify flow deployment status
  • Test input parameters independently
  • Monitor flow execution time
  • Review permission settings

Example Use Cases

Multi-step Processing

  1. Data Preparation Flow:

    • Clean and validate input data
    • Transform data format
    • Apply business rules
  2. Analysis Flow:

    • Process prepared data
    • Generate insights
    • Create reports
  3. Notification Flow:

    • Send results to stakeholders
    • Update systems
    • Log completion status

Chain Processing

  • Execute series of specialized flows
  • Pass results between flows
  • Maintain process isolation
