JSON Agent
The JSON Agent calls an LLM and returns structured JSON that matches a schema you define. Use it when you need predictable, typed output (e.g. for APIs, data pipelines, or reports) instead of free-form text.
When to use this
| Use the JSON Agent when… | Use the Generate JSON node instead when… |
|---|---|
| You want an agent you can reuse across Flows (shared config, saved configs) | You only need one LLM step inside a single Flow that outputs JSON |
| You're building from the Agent dashboard and wiring it into multiple Flows | You're building everything in the Flow Editor and want a single node to produce JSON |
Both can produce schema-bound JSON; the JSON Agent is an agent abstraction with its own config and templates.
Quickstart

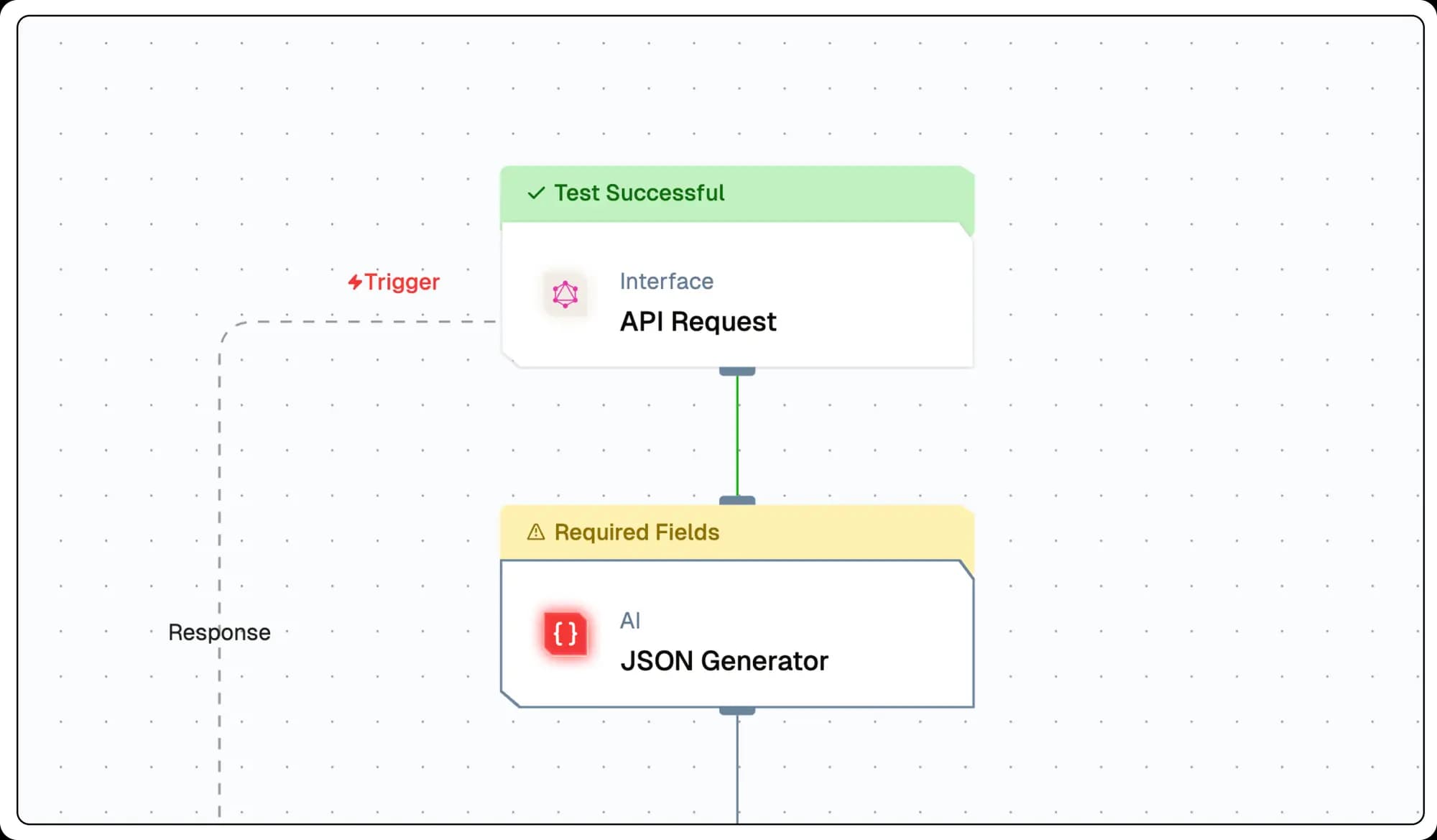

- Add a JSON Agent node to your Flow (or create a JSON Agent from the Agents page).
- Define the output schema (JSON Schema) so the model knows the exact shape (e.g.
{ "destination": "string", "activities": ["string"] }). - Set the prompt (and optional system instructions) so the model gets clear instructions.
- Select the model and credentials.

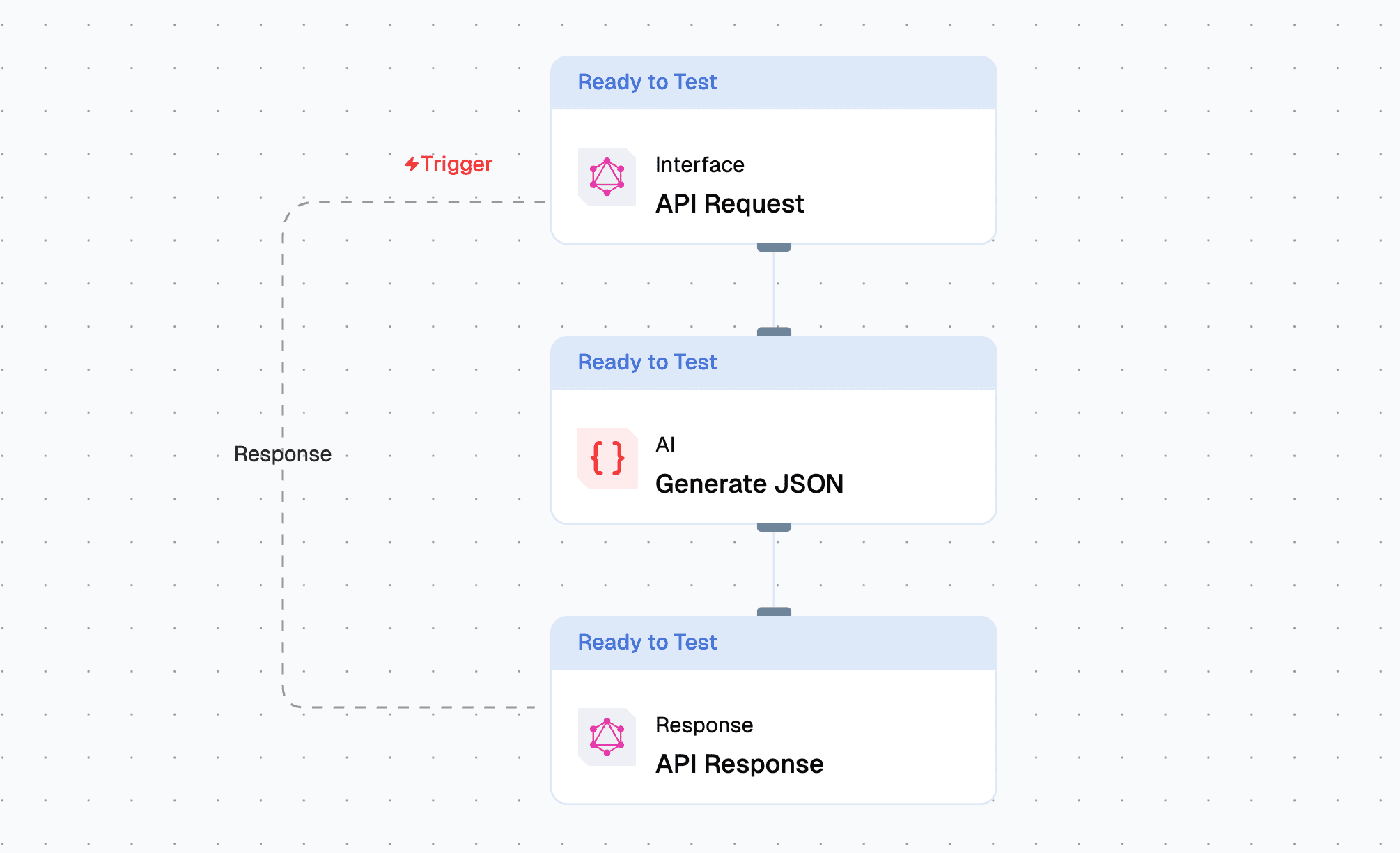

- Connect the node to your trigger and run the Flow.
Save the agent config (Load/Save Config) to reuse the same schema and prompts in other Flows.
Configuration reference
| Parameter | Description | Example |
|---|---|---|
| Prompts | System, user, and assistant prompts for the LLM | System Prompt, User Prompt |
| Models | AI model used for generation | GPT-4 Turbo |
| Inputs | Input schema (Zod format) | {"type": "string"} |
| Attachments | Files sent with the prompt | {"file": "data.csv"} |
| Messages | Conversation history (user/assistant) | [{"message": "…"}] |
| Memories | User/assistant memories | [{"memory": "…"}] |
Common patterns
- API response shaping — Map user input to a fixed JSON response (e.g. form extraction, search filters).
- Data extraction — Turn unstructured text (emails, docs) into JSON for pipelines.
- Structured reports — Generate JSON blobs (e.g. summaries, recommendations) for dashboards or downstream systems.
Troubleshooting
| Problem | What to do |
|---|---|
| Output doesn’t match schema | Tighten the prompt (e.g. “Return only valid JSON with these keys”) and confirm the schema matches the keys you expect. Re-run and check logs. |
| Invalid or truncated JSON | Increase max tokens if the response is cut off; ask the model to return only the JSON object, no markdown or extra text. |
| Wrong model or credentials | In the node config, verify the selected model and that the linked credential (e.g. OpenAI key) is valid and has access. |

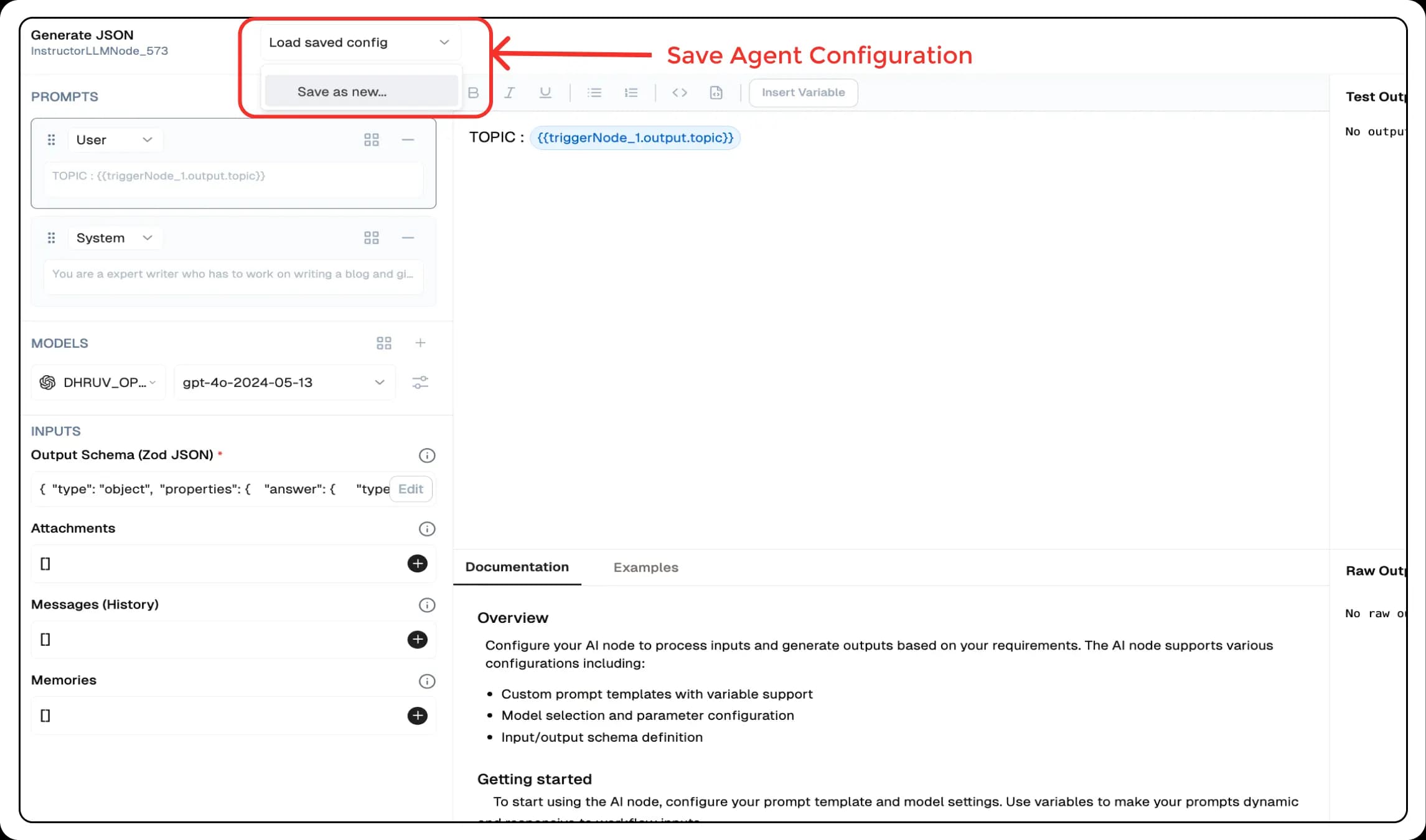

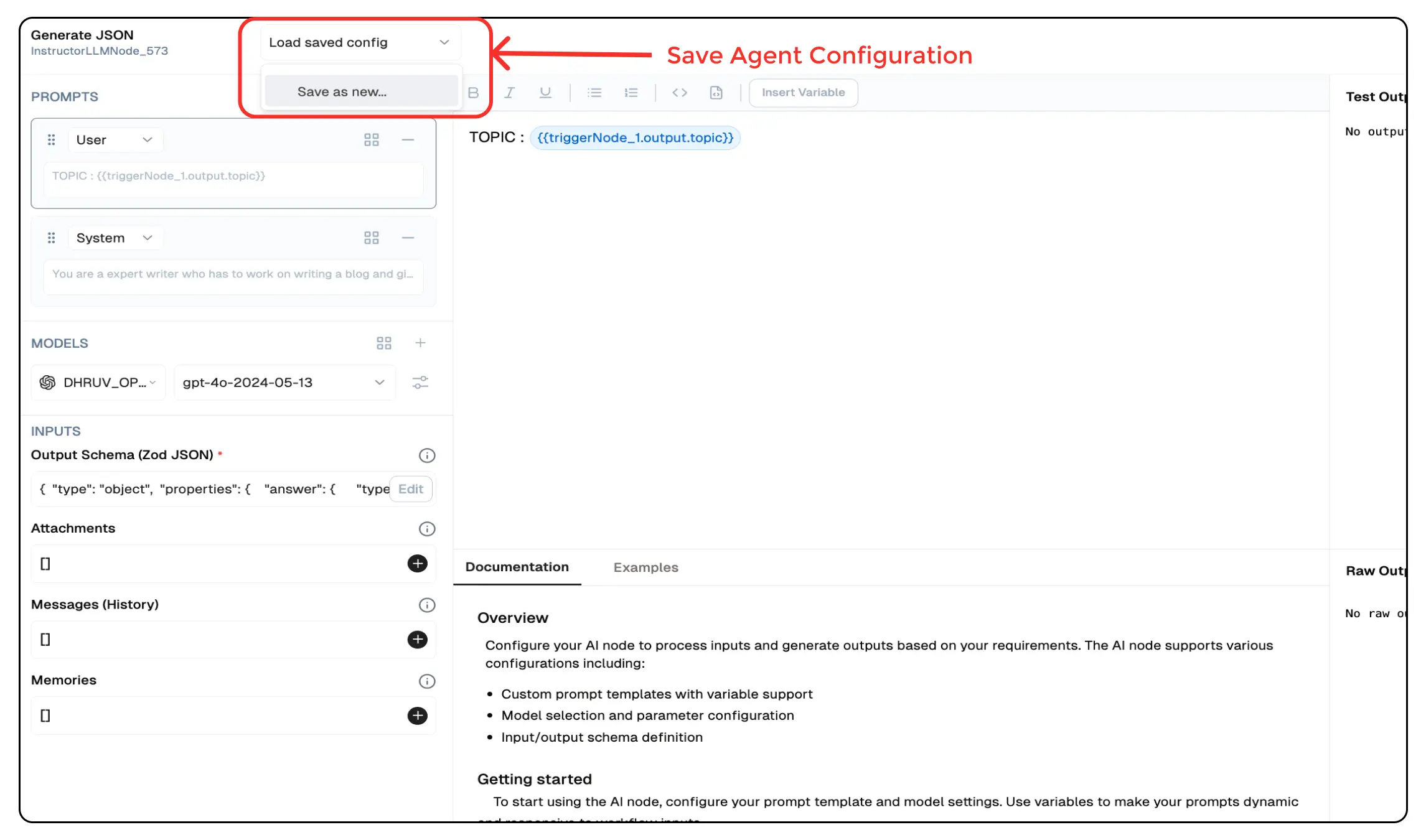

Save agent configuration
Click Load Save Config → Save as New to save the agent’s configuration. Use Load Configuration in another agent or Flow to reuse it.
Low-code example
nodes:
- nodeId: JSONAgent_774
nodeType: JSONAgent
nodeName: Structured JSON Generator
values:
schema: |-
{
"type": "object",
"properties": {
"destination": { "type": "string" },
"description": { "type": "string" },
"recommended_activities": {
"type": "array",
"items": { "type": "string" }
}
}
}
promptTemplate: "Generate structured JSON for ${{triggerNode_1.output.topic}}"
generativeModelName:
provider_name: mistral
type: generator/text
credential_name: Mistral API
credentialId: 32bf5e3b-a8fc-4697-b95a-b1af3dcf7498
model_name: mistral/mistral-large-2402
needs:
- triggerNode_1Output schema
The node returns your custom fields plus a _meta object with token usage and model info.
_meta— Metadata for the request:prompt_tokens,completion_tokens,total_tokens,model_name,model_provider, and optionalprompt_tokens_details/completion_tokens_details.
Example output
{
"name": "Adelaide",
"_meta": {
"prompt_tokens": 56,
"completion_tokens": 7,
"total_tokens": 63,
"model_name": "gpt-4-turbo",
"model_provider": "openai"
}
}For full token-detail fields, see the GraphQL response docs.
Debugging
- Check Flow logs in Studio for the run and the failing node.
- Verify the API key (or model credential) used by the node is valid and has access to the chosen model.
