Wait Node

Loading node sections...

Overview

The Wait Node is a timing control component that introduces delays in workflow execution. This node is useful for rate limiting, scheduling, and ensuring proper timing between workflow steps.

Node Type Information

Type	Description	Status
Batch Trigger	Starts the flow on a schedule or batch event. Ideal for periodic data processing.	❌ False
Event Trigger	Starts the flow based on external events (e.g., webhook, user interaction).	❌ False
Action	Executes a task or logic as part of the flow (e.g., API call, transformation).	✅ True

This node is an **Action** node that introduces controlled delays in workflow execution for timing and rate limiting purposes.

Features

Key Functionalities

Execution Wait: Wait for a specified time during the flow.
Step Synchronization: Add wait time between dependent steps in your flow.
Sequential Flow Control: Ensure proper timing across nodes.
Simple Configuration: Define wait time with a single value.

Benefits

Improved Flow Stability: Reduces errors caused by premature executions.
Controlled Execution: Enables better coordination between systems or APIs.
Reduced Failure Rates: Avoids overloading external systems by spacing out actions.
Flexible Timing: Wait duration can be set per use case.
No Extra Scripting Required: Add timing logic directly within your flow visually.

What Can You Build?

Throttled API Calls: Wait between API calls to respect third-party rate limits.
Retry Gaps: Wait before retrying failed operations or requests.
Staggered Alerts: Wait before sending time-based notifications.
Process Timing Flows: Add waits to align with expected processing time of external systems.

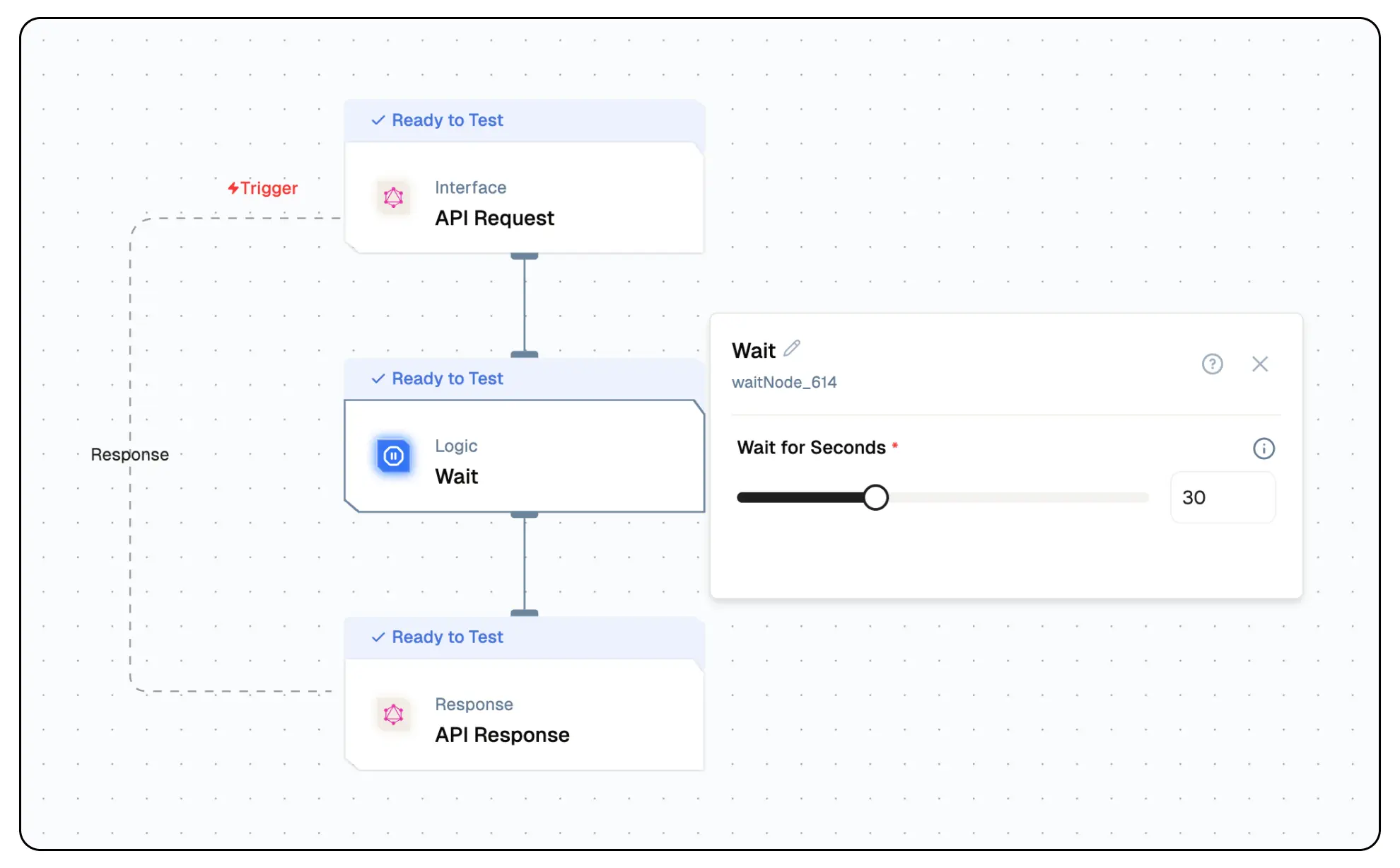

Setup

Select the Wait Node

Select the Wait Node into your Lamatic flow.
Set the Wait Time (in seconds) between 1 and 90.
Connect it before the next step that needs to wait.
Deploy your flow and test to validate the wait duration.

Configuration Reference

Parameter	Description	Required	Example Value
Wait Time (sec)	Time in seconds to wait before proceeding (1–90 sec).	Yes	10

Low-Code Example

nodes:
  - nodeId: waitNode_614
    nodeType: waitNode
    nodeName: Wait
    values:
      seconds: 30
    modes: {}
    needs:
      - triggerNode_1
responseNode:
  nodeId: responseNode_triggerNode_1
  nodeType: graphqlResponseNode
  nodeName: API Response
  values:
    outputMapping: "{}"
  needs:
    - waitNode_614

Output

The Wait Node return status (true/false). It simply waits for the configured duration before triggering the next node.

{
  "output": {
    "success": true
  },
  "input": {
    "nodeName": "Wait",
    "seconds": 30
  },
  "logs": null,
  "status": "success"
}

Troubleshooting

Common Issues

Problem	Solution
Flow Not Continuing	Ensure the wait time is a number between 1 and 90 seconds.
Unexpected Wait Time	Check for additional waits or slow nodes in the flow.

Debugging

Check Lamatic Flow logs for error details.
Use Lamatic flow logs to verify wait duration execution.
Check surrounding nodes to rule out additional delays.
