Overview

The Gmail Node is an email automation component that provides both event triggering and action capabilities for Gmail integration. This node enables automated email monitoring, sending, and management within flows, supporting real-time email processing and automated email operations.

Node Type Information

Type	Description	Status
Batch Trigger	Starts the flow on a schedule or batch event. Ideal for periodic data processing.	❌ False
Event Trigger	Starts the flow based on external events (e.g., webhook, user interaction).	✅ True
Action	Executes a task or logic as part of the flow (e.g., API call, transformation).	✅ True

This node is both an Event Trigger and Action node that provides email automation capabilities for monitoring, sending, and managing emails.

This node combines Event Trigger and Action capabilities to provide comprehensive email automation within your workflows.

Features

Key Functionalities

Event Trigger - On New Email: Automatically triggers workflows when new emails are received, enabling real-time email processing and automation.
Action - Send Email: Composes and sends emails with customizable content, recipients, and attachments (including URL-based attachments).
Action - Create Email Draft: Creates email drafts with support for attachments via URL, CC/BCC, and extra recipients.
Action - Fetch Email: Retrieves specific emails or email threads based on search criteria and filters with enhanced options including composite queries, max results, and page tokens.
Action - List Labels: Retrieves all Gmail labels for the authenticated account.
Action - Fetch Message by Thread ID: Retrieves a specific message by its thread ID.
Action - List Threads: Lists email threads with filtering and pagination support.
Action - Reply to Thread: Replies to an existing email thread with support for attachments via URL, CC/BCC, and extra recipients.

Benefits

Real-time Email Monitoring: Automatically responds to incoming emails without manual intervention.
Automated Email Communication: Streamlines email sending processes with customizable templates and dynamic content.
Advanced Email Management: List and filter threads, fetch messages by thread ID, and manage Gmail labels programmatically.
Thread-based Conversations: Reply to threads to maintain conversation context and continuity.
Flexible Attachments: Support for URL-based attachments in sends, drafts, and replies with name and MIME type specification.
Enhanced Email Retrieval: Composite queries, pagination, and filtering options for efficient email data extraction.
Calendar Integration: Seamlessly converts email content into calendar events for better scheduling.

Prerequisites

Before using Gmail Node, ensure the following:

Gmail Account: A valid Gmail account with proper authentication setup.

Setup

Step 1: Set Up Gmail API Access

Set Up Google Drive Access
- Set up Google OAuth credentials for Gmail access |

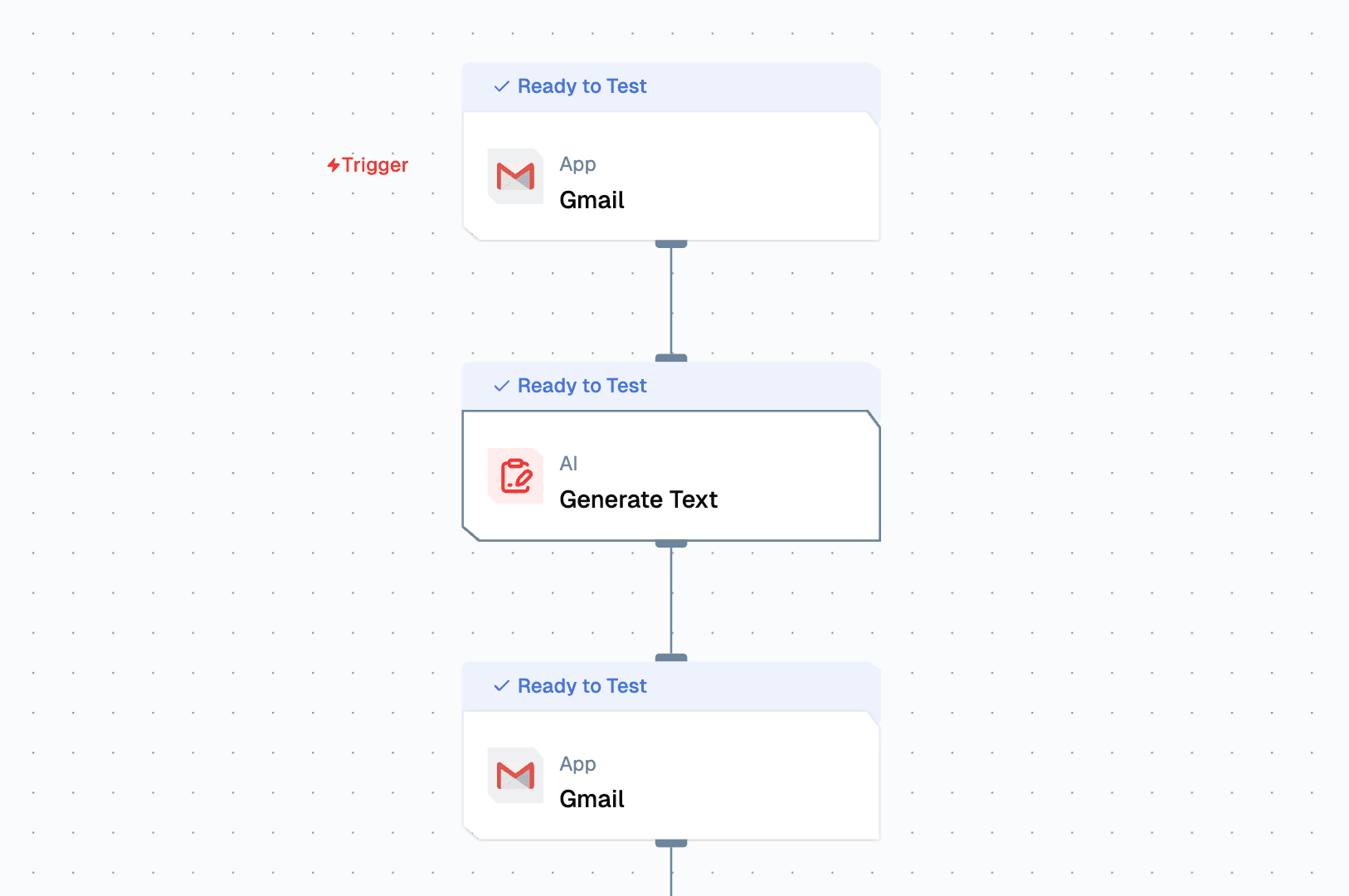

Step 2: Set Up Lamatic Flow

Create a Custom Flow for Gmail automation:
- Configure the Gmail node based on your use case
- Set up event triggers for email monitoring
- Define action parameters for email operations

Configuration Reference

Event Trigger Configuration

Parameter	Description	Required	Example
Name	Display name for the node	✅	`Gmail Monitor`
Credentials	Gmail authentication details required to access the account	✅	`my-gmail-credentials`
Trigger Type	Type of email event to monitor	✅	`On New Email`

Action Configuration

Send Email Action

Parameter	Description	Required	Example
Name	Display name for the action	✅	`Send Email`
Credentials	Gmail authentication details required to send emails	✅	`my-gmail-credentials`
Action	Actions for Gmail	✅	`Send Email`, `Create Email Draft`, `Fetch Email`, `List Labels`, etc.
Recipient Email	Recipient email addresses (comma-separated)	✅	`[email protected]`
Subject	Email subject line	✅	`Automated Response`
Body	Email body content (supports HTML and plain text)	✅	`Hello, this is an automated email.`
CC	CC recipient email addresses (comma-separated)	❌	`[email protected]`
BCC	BCC recipient email addresses (comma-separated)	❌	`[email protected]`
Is Content HTML?	Set to true if the email body is HTML.	❌	`true`, `false`
Attachment URLs	Array of attachment objects with `url`, `name`, and `mimeType` (comma-separated)	❌	`https://example.com/file.pdf, document.pdf, application/pdf`

Fetch Email Action

Parameter	Description	Required	Example
Name	Display name for the action	✅	`Fetch Email`
Credentials	Gmail authentication details required to fetch emails	✅	`my-gmail-credentials`
Max Results	Maximum number of emails to retrieve	❌	`10`
From User	If provided, only emails from the specified user(s) will be fetched. If not provided, all emails will be fetched.	❌	`[email protected]`
To User	If provided, only emails to the specified user(s) will be fetched. If not provided, all emails will be fetched.	❌	`[email protected]`
Query	Composite Gmail search query (supports Gmail search syntax)	❌	`from:example.com is:unread`
Page Token	Token for pagination to retrieve next page of results	❌	`CAESFQoI...`

Create Email Draft Action

Parameter	Description	Required	Example
Name	Display name for the action	✅	`Create Email Draft`
Credentials	Gmail authentication details required to create drafts	✅	`my-gmail-credentials`
Action	Actions for Gmail	✅	`Create Email Draft`
Recipient Email	Recipient email addresses (comma-separated)	✅	`[email protected]`
Subject	Email subject line	✅	`Draft Email`
Body	Email body content (supports HTML and plain text)	✅	`This is a draft email.`
CC	CC recipient email addresses (comma-separated)	❌	`[email protected]`
BCC	BCC recipient email addresses (comma-separated)	❌	`[email protected]`
Is Content HTML?	Set to true if the email body is HTML.	❌	`true`, `false`
Attachment URLs	Array of attachment objects with `url`, `name`, and `mimeType` (comma-separated)	❌	`https://example.com/file.pdf, document.pdf, application/pdf`

List Labels Action

Parameter	Description	Required	Example
Name	Display name for the action	✅	`List Labels`
Credentials	Gmail authentication details required to list labels	✅	`my-gmail-credentials`
Action	Actions for Gmail	✅	`List Labels`

Fetch Message by Thread ID Action

Parameter	Description	Required	Example
Name	Display name for the action	✅	`Fetch Message by Thread ID`
Credentials	Gmail authentication details required to fetch messages	✅	`my-gmail-credentials`
Action	Actions for Gmail	✅	`Fetch Message by Thread ID`
Thread ID	The Gmail thread ID to fetch messages from	✅	`18c0f0a1a2b3c4d5`

List Threads Action

Parameter	Description	Required	Example
Name	Display name for the action	✅	`List Threads`
Credentials	Gmail authentication details required to list threads	✅	`my-gmail-credentials`
Action	Actions for Gmail	✅	`List Threads`
Query	Gmail search query to filter threads (supports Gmail search syntax)	❌	`from:example.com is:unread`
Max Results	Maximum number of threads to retrieve	❌	`10`
Page Token	Token for pagination to retrieve next page of results	❌	`CAESFQoI...`

Reply to Thread Action

Parameter	Description	Required	Example
Name	Display name for the action	✅	`Reply to Thread`
Credentials	Gmail authentication details required to reply to threads	✅	`my-gmail-credentials`
Action	Actions for Gmail	✅	`Reply to Thread`
Thread ID	The Gmail thread ID to reply to	✅	`18c0f0a1a2b3c4d5`
Body	Reply body content (supports HTML and plain text)	✅	`Thank you for your email.`
CC	CC recipient email addresses (comma-separated)	❌	`[email protected]`
BCC	BCC recipient email addresses (comma-separated)	❌	`[email protected]`
Is Content HTML?	Set to true if the reply body is HTML.	❌	`true`, `false`
Attachment URLs	Array of attachment objects with `url`, `name`, and `mimeType` (comma-separated)	❌	`https://example.com/file.pdf, document.pdf, application/pdf`

Low-Code Example

Event Trigger Example

triggerNode:
  nodeId: triggerNode_1
  nodeType: gmailNode
  nodeName: Gmail
  values:
    credentials: Gmail OAuth VJS
    action: GMAIL_NEW_GMAIL_MESSAGE
  modes: {}

Action Examples

Send Email Action

nodes:
  - nodeId: gmailNode_397
    nodeType: gmailNode
    nodeName: Gmail
    values:
      credentials: Gmail OAuth VJS
      action: GMAIL_SEND_EMAIL
      recipient_email: ''
      cc: ''
      bcc: ''
      subject: ''
      body: ''
      is_html: false
      attachment_urls: ''
    modes: {}
    needs:
      - triggerNode_1

Create Email Draft Action

nodes:
  - nodeId: gmailNode_397
    nodeType: gmailNode
    nodeName: Gmail
    values:
      credentials: Gmail OAuth VJS
      action: GMAIL_CREATE_EMAIL_DRAFT
      recipient_email: ''
      cc: ''
      bcc: ''
      subject: ''
      body: ''
      is_html: false
      attachment_urls: ''
    modes: {}
    needs:
      - triggerNode_1

Fetch Email Action

nodes:
  - nodeId: gmailNode_397
    nodeType: gmailNode
    nodeName: Gmail
    values:
      credentials: Gmail OAuth VJS
      action: GMAIL_FETCH_EMAILS
      recipient_email: ''
      cc: ''
      bcc: ''
      subject: ''
      body: ''
      is_html: false
      max_results: 10
      from_user: ''
      to_user: ''
      query: 'from:example.com is:unread'
      page_token: ''
    modes: {}
    needs:
      - triggerNode_1

List Labels Action

nodes:
  - nodeId: gmailNode_398
    nodeType: gmailNode
    nodeName: Gmail
    values:
      credentials: Gmail OAuth VJS
      action: GMAIL_LIST_LABELS
    modes: {}
    needs:
      - triggerNode_1

Fetch Message by Thread ID Action

nodes:
  - nodeId: gmailNode_399
    nodeType: gmailNode
    nodeName: Gmail
    values:
      credentials: Gmail OAuth VJS
      action: GMAIL_FETCH_MESSAGE_BY_THREAD_ID
      thread_id: '18c0f0a1a2b3c4d5'
    modes: {}
    needs:
      - triggerNode_1

List Threads Action

nodes:
  - nodeId: gmailNode_400
    nodeType: gmailNode
    nodeName: Gmail
    values:
      credentials: Gmail OAuth VJS
      action: GMAIL_LIST_THREADS
      query: 'from:example.com is:unread'
      max_results: 10
      page_token: ''
    modes: {}
    needs:
      - triggerNode_1

Reply to Thread Action

nodes:
  - nodeId: gmailNode_401
    nodeType: gmailNode
    nodeName: Gmail
    values:
      credentials: Gmail OAuth VJS
      action: GMAIL_REPLY_TO_THREAD
      thread_id: '18c0f0a1a2b3c4d5'
      body: 'Thank you for your email.'
      cc: ''
      bcc: ''
      is_html: false
      attachment_urls: ''
    modes: {}
    needs:
      - triggerNode_1

Output

Event Trigger Output

emailId: String identifier for the email
from: String containing the sender's email address
to: String containing the recipient's email address
subject: String containing the email subject
body: String containing the email body content
timestamp: String containing the email timestamp
labels: Array of strings containing Gmail labels
attachments: Array of attachment objects (if any)

Action Output

Send Email Output

messageId: String identifier for the sent email
threadId: String identifier for the email thread
success: Boolean indicating if the email was sent successfully
timestamp: String containing the send timestamp

Create Event Draft Output

eventId: String identifier for the created event
eventLink: String containing the link to the event
success: Boolean indicating if the event was created successfully
attendees: Array of attendee objects with their response status

Fetch Email Output

emails: Array of email objects containing:
- emailId: String identifier for the email
- from: String containing the sender's email address
- to: String containing the recipient's email address
- subject: String containing the email subject
- body: String containing the email body content
- timestamp: String containing the email timestamp
- labels: Array of strings containing Gmail labels
- attachments: Array of attachment objects (if any)
totalCount: Number indicating the total number of emails found
nextPageToken: String token for pagination (if applicable)

Create Email Draft Output

draftId: String identifier for the created draft
messageId: String identifier for the draft message
threadId: String identifier for the email thread (if replying)
success: Boolean indicating if the draft was created successfully
timestamp: String containing the draft creation timestamp

List Labels Output

labels: Array of label objects containing:
- id: String identifier for the label
- name: String containing the label name
- type: String indicating the label type (system, user)
- messageListVisibility: String indicating message list visibility
- labelListVisibility: String indicating label list visibility
- color: Object containing label color information (if applicable)

Fetch Message by Thread ID Output

threadId: String identifier for the thread
messages: Array of message objects containing:
- messageId: String identifier for the message
- threadId: String identifier for the thread
- from: String containing the sender's email address
- to: Array of strings containing recipient email addresses
- subject: String containing the email subject
- body: String containing the email body content
- timestamp: String containing the email timestamp
- labels: Array of strings containing Gmail labels
- attachments: Array of attachment objects (if any)
historyId: String containing the history ID for the thread

List Threads Output

threads: Array of thread objects containing:
- threadId: String identifier for the thread
- historyId: String containing the history ID
- snippet: String containing a preview snippet of the thread
- messages: Array of message objects (if expanded)
totalCount: Number indicating the total number of threads found
nextPageToken: String token for pagination (if applicable)

Reply to Thread Output

messageId: String identifier for the reply message
threadId: String identifier for the email thread
success: Boolean indicating if the reply was sent successfully
timestamp: String containing the reply send timestamp

Troubleshooting

Common Issues

Problem	Solution
Authentication Errors	Verify that the Gmail OAuth credentials are valid and have the correct scopes
Permission Denied	Ensure the Gmail API is enabled and the account has proper permissions
Email Not Triggering	Check the filter criteria and ensure the monitored label exists
Send Email Fails	Verify recipient email addresses and ensure the account has sending permissions
Calendar Access Issues	Confirm that Calendar API is enabled and the account has calendar permissions
Rate Limiting	Implement appropriate delays between API calls to avoid hitting rate limits

Debugging

Check Gmail API logs for detailed error messages
Verify OAuth token validity and refresh if necessary
Test email filters using Gmail's search syntax
Monitor API quota usage to avoid rate limiting
Validate email addresses and calendar event parameters
Check network connectivity and firewall settings
Review Gmail API documentation for specific error codes

Gmail Node

Overview

Node Type Information

Features

Prerequisites

Setup

Step 1: Set Up Gmail API Access

Step 2: Set Up Lamatic Flow

Configuration Reference

Event Trigger Configuration

Action Configuration

Send Email Action

Fetch Email Action

Create Email Draft Action

List Labels Action

Fetch Message by Thread ID Action

List Threads Action

Reply to Thread Action

Low-Code Example

Event Trigger Example

Action Examples

Send Email Action

Create Email Draft Action

Fetch Email Action

List Labels Action

Fetch Message by Thread ID Action

List Threads Action

Reply to Thread Action

Output

Event Trigger Output

Action Output

Send Email Output

Create Event Draft Output

Fetch Email Output

Create Email Draft Output

List Labels Output

Fetch Message by Thread ID Output

List Threads Output

Reply to Thread Output

Troubleshooting

Common Issues

Debugging

Was this page useful?

Questions? We're here to help

Subscribe to updates
