Overview

The Twilio Node is a communication automation component that provides action capabilities for multi-channel messaging and calling. This node enables automated SMS sending, voice calls, and WhatsApp messaging within flows, supporting comprehensive communication automation across different channels.


Node Type Information

TypeDescriptionStatus
Batch TriggerStarts the flow on a schedule or batch event. Ideal for periodic data processing.❌ False
Event TriggerStarts the flow based on external events (e.g., webhook, user interaction).❌ False
ActionExecutes a task or logic as part of the flow (e.g., API call, transformation).✅ True

This node is an Action node that provides communication automation capabilities for SMS, voice calls, and WhatsApp messaging.

This node provides Action capabilities to enable comprehensive communication automation within your workflows.

Features

Key Functionalities
  1. Action - Send SMS: Sends text messages to phone numbers with customizable content and delivery options.
  2. Action - Send Voice Call: Makes automated voice calls with custom messages and call management features.
  3. Action - Send WhatsApp Message: Sends WhatsApp messages including text and media content to WhatsApp-enabled numbers.
Benefits
  1. Multi-Channel Communication: Supports SMS, voice calls, and WhatsApp messaging from a single integration.
  2. Automated Messaging: Streamlines communication processes with programmable messaging and calling.
  3. Global Reach: Leverages Twilio's global infrastructure for reliable message delivery worldwide.
  4. Rich Media Support: Enables sending media files through WhatsApp messaging for enhanced communication.

Prerequisites

Before using Twilio Node, ensure the following:

  • Twilio Account: A valid Twilio account with active phone numbers and proper authentication setup.
  • Twilio Credentials: Account SID and Auth Token from your Twilio console.

Setup

Step 1: Set Up Twilio Account

  1. Create Twilio Account:

  2. Get Credentials:

    • Navigate to your Twilio Console Dashboard
    • Copy your Account SID and Auth Token
    • Store these credentials securely for use in Lamatic
  3. Purchase Phone Numbers (if needed):

    • Buy phone numbers for SMS and voice calls
    • Set up WhatsApp Business API (for WhatsApp messaging)

Step 2: Set Up Lamatic Flow

  1. Create a Custom Flow for Twilio automation:
    • Configure the Twilio node based on your use case
    • Set up action parameters for your communication needs
    • Test the integration with your Twilio credentials

Configuration Reference

Credential Configuration

ParameterDescriptionRequiredExample
Credential NameDisplay name for the Twilio credentialsmy-twilio-credentials
Account SIDYour Twilio Account SID from the consoleACxxxxxxxxxxxxxxxxxxxxxxxxxxxxx
Auth TokenYour Twilio Auth Token from the consoleyour-auth-token-here

Action Configuration

Send SMS Action

ParameterDescriptionRequiredExample
NameDisplay name for the actionSend SMS
CredentialsTwilio authentication detailsmy-twilio-credentials
ActionType of Twilio action to performSend SMS, Send Voice Call, Send WhatsApp Message
BodySMS message contentHello, this is an automated SMS message.
ToRecipient phone number (E.164 format)+1234567890
FromSender phone number (your Twilio number)+1987654321

Send Voice Call Action

ParameterDescriptionRequiredExample
NameDisplay name for the actionSend Voice Call
CredentialsTwilio authentication detailsmy-twilio-credentials
ActionType of Twilio action to performSend Voice Call
Voice MessageText to be converted to speech for the callHello, this is an automated voice call.
Call ToRecipient phone number (E.164 format)+1234567890
Call FromSender phone number (your Twilio number)+1987654321
Call TimeoutMaximum call duration in seconds30

Send WhatsApp Message Action

ParameterDescriptionRequiredExample
NameDisplay name for the actionSend WhatsApp Message
CredentialsTwilio authentication detailsmy-twilio-credentials
ActionType of Twilio action to performSend WhatsApp Message
WhatsApp MessageWhatsApp message contentHello, this is an automated WhatsApp message.
To (WhatsApp)Recipient WhatsApp number (E.164 format)+1234567890
From (WhatsApp)Sender WhatsApp number (your Twilio WhatsApp number)+1987654321
Media URLURL of media file to send (image, document, etc.)https://example.com/image.jpg

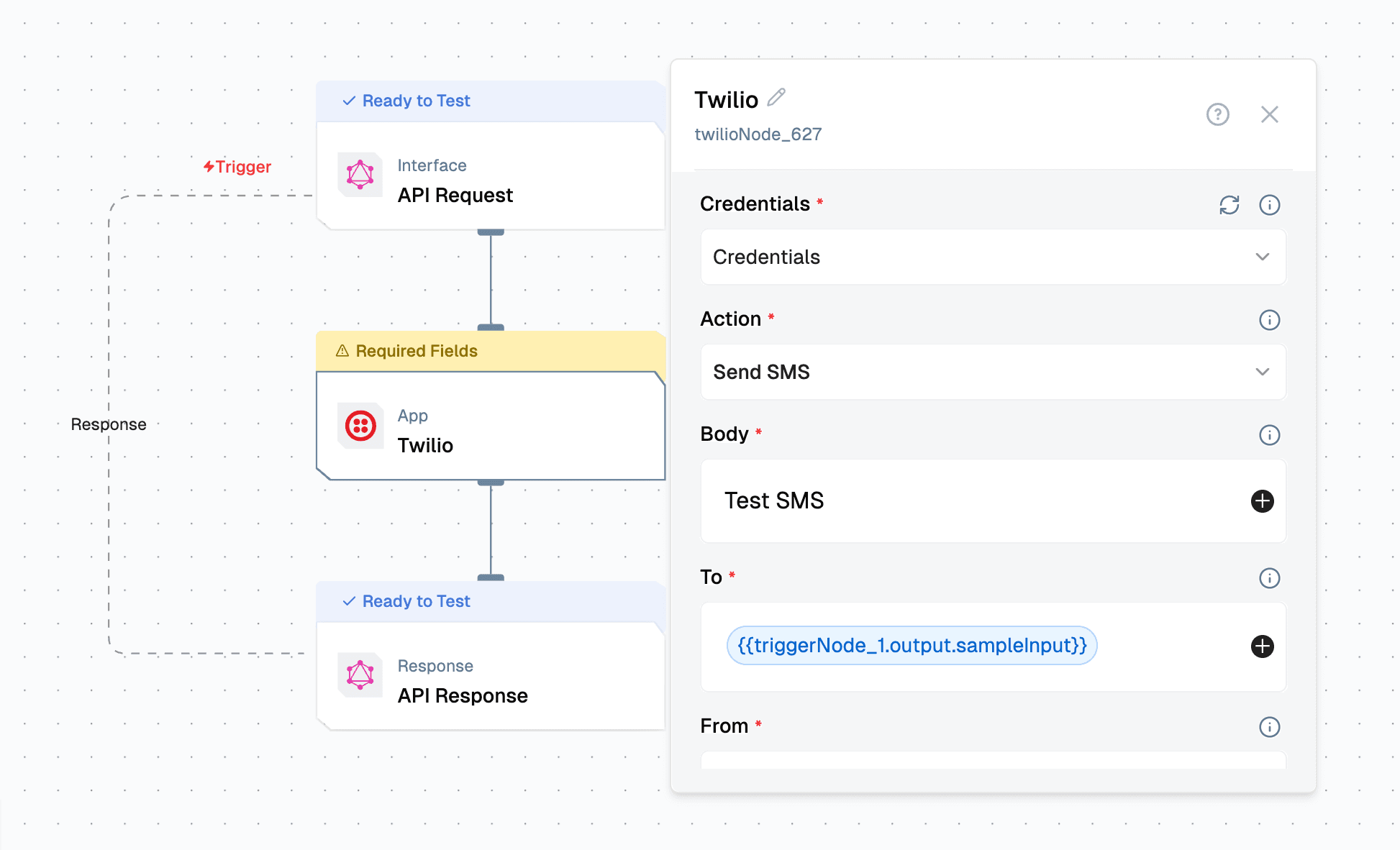

Low-Code Example

Send SMS Action

nodes:
  - nodeId: twilioNode_1
    nodeType: twilioNode
    nodeName: Twilio
    values:
      credentials: my-twilio-credentials
      action: sms
      timeout: 60
      to: '{{triggerNode_1.output.sampleInput}}'
      from: '{{triggerNode_1.output.sampleInput}}'
      body: Test SMS
    modes: {}
    needs:
      - triggerNode_1

Send Voice Call Action

nodes:
  - nodeId: twilioNode_2
    nodeType: twilioNode
    nodeName: Twilio
    values:
      credentials: my-twilio-credentials
      action: voice_call
      timeout: 60
      to: '{{triggerNode_1.output.sampleInput}}'
      from: '{{triggerNode_1.output.sampleInput}}'
      body: Test SMS
    modes: {}
    needs:
      - triggerNode_1

Send WhatsApp Message Action

nodes:
  - nodeId: twilioNode_3
    nodeType: twilioNode
    nodeName: Twilio
    values:
      credentials: my-twilio-credentials
      action: whatsapp
      timeout: 60
      to: '{{triggerNode_1.output.sampleInput}}'
      from: '{{triggerNode_1.output.sampleInput}}'
      body: Test SMS
    modes: {}
    needs:
      - triggerNode_1

Output

Send SMS Output

  • messageId: String identifier for the sent SMS message
  • status: String indicating the delivery status
  • to: String containing the recipient phone number
  • from: String containing the sender phone number
  • body: String containing the message content
  • price: String containing the cost of the message
  • timestamp: String containing the send timestamp

Send Voice Call Output

  • callId: String identifier for the voice call
  • status: String indicating the call status
  • to: String containing the recipient phone number
  • from: String containing the sender phone number
  • duration: String containing the call duration
  • price: String containing the cost of the call
  • timestamp: String containing the call timestamp

Send WhatsApp Message Output

  • messageId: String identifier for the WhatsApp message
  • status: String indicating the delivery status
  • to: String containing the recipient WhatsApp number
  • from: String containing the sender WhatsApp number
  • body: String containing the message content
  • mediaUrl: String containing the media URL (if sent)
  • timestamp: String containing the send timestamp

Troubleshooting

Common Issues

ProblemSolution
Authentication ErrorsVerify that the Account SID and Auth Token are correct and valid
Invalid Phone NumbersEnsure phone numbers are in E.164 format (e.g., +1234567890)
SMS Delivery FailsCheck if the recipient number is valid and can receive SMS
Voice Call IssuesVerify the sender number has voice calling capabilities enabled
WhatsApp API ErrorsEnsure WhatsApp Business API is properly configured and approved
Rate LimitingImplement appropriate delays between API calls to avoid hitting rate limits
Insufficient CreditsCheck your Twilio account balance and add funds if necessary

Debugging

  • Check Twilio API logs for detailed error messages
  • Verify phone number formats and validity
  • Test credentials using Twilio's API explorer
  • Monitor account usage and billing
  • Validate media URLs for WhatsApp messages
  • Check network connectivity and firewall settings
  • Review Twilio API documentation for specific error codes
  • Ensure proper permissions for the phone numbers being used
